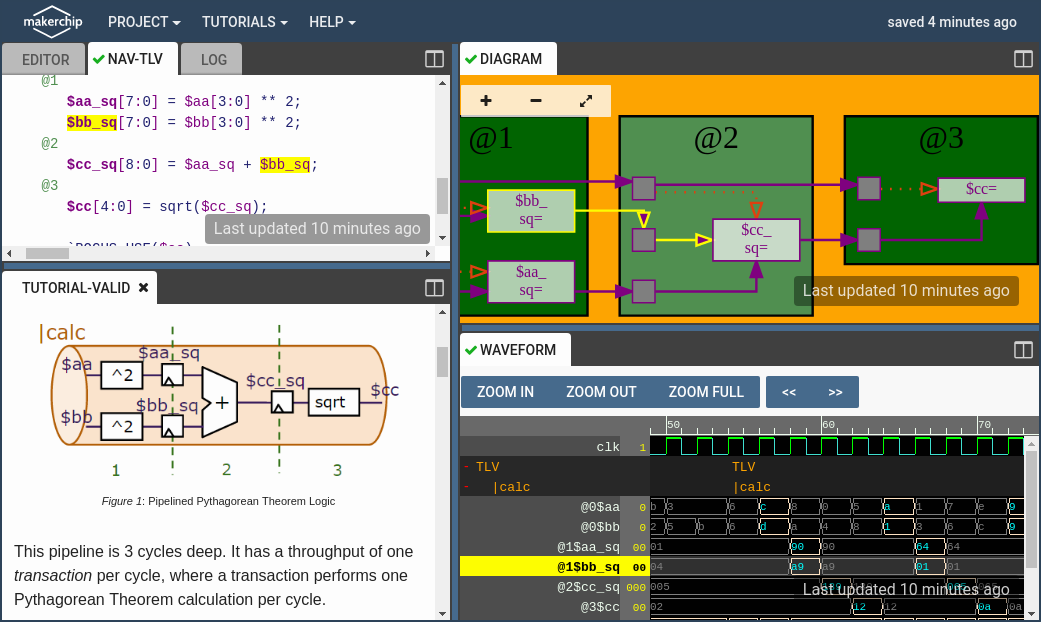

Makerchip is a free online environment for developing high-quality integrated circuits. You can code, compile, simulate, and debug Verilog designs, all from your browser. Your code, block diagrams, and waveforms are tightly integrated.
While Makerchip introduces ground-breaking capabilities for advanced design, it also makes circuit design easy and fun! Tutorials will get you going, so be among the first to experience a new era of circuit design!
Did we say "easy" and "Verilog" in the same breath? That's just contradictory! That's why we've fully embraced the emerging Transaction-Level Verilog standard. Transaction-Level Verilog, or TL-Verilog, represents a huge step forward, by eliminating the need for the legacy language features of Verilog and by introducing simpler syntax. At the same time, TL-Verilog adds powerful constructs for pipelines and transactions. We'll help you learn it, and you'll never turn back!
Here's a quick taste of TL-Verilog. (Not familiar with sequential logic? Try Wikipedia.)

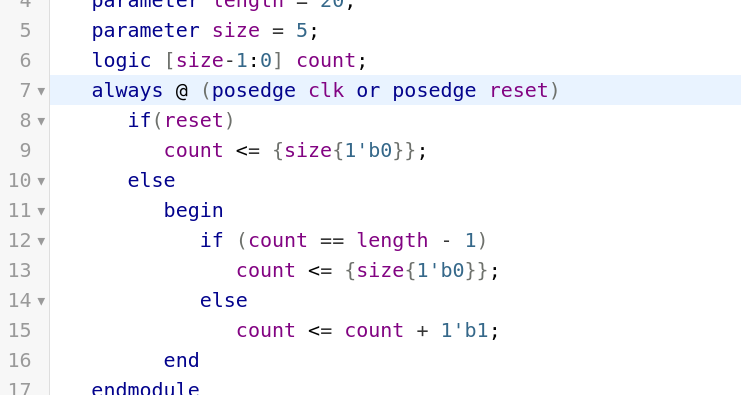

Instead of writing in Verilog
always_ff @(posedge clk) begin ... to create flip-flops... don't write anything!
Organize your Verilog logic statements into pipelines, and let TL-Verilog
imply the necessary flip-flops.

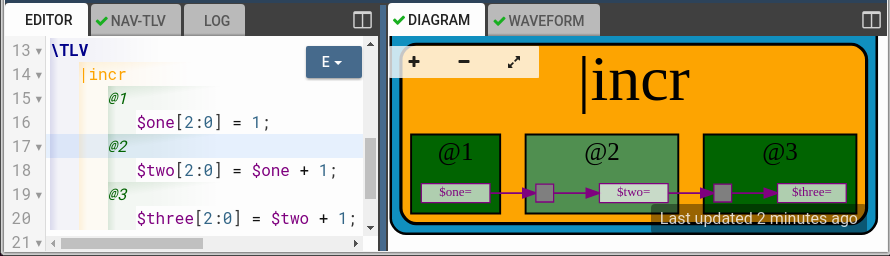

The code below provides a pipeline, called
@3. Each stage increments the value from
the previous stage by one in a subsequent clock cycle.
Flip-flops (represented as grey squares in the diagram)
carry values from one stage to the next.
In case you are curious, here's some corresponding Verilog code:
logic [2:0] INCR_one_a1, INCR_one_a2; logic [2:0] INCR_two_a2, INCR_two_a3; logic [2:0] INCR_three_a3; assign INCR_one_a1[2:0] = 1; always_ff @(posedge clk) INCR_one_a2 <= INCR_one_a1; assign INCR_two_a2 = INCR_one_a2 + 1; always_ff @(posedge clk) INCR_two_a3 <= INCR_two_a2; assign INCR_three_a3 = INCR_two_a3 + 1;
Pipeline context reduces bugs and makes your design easy to maintain in the face of timing changes.
Learn more about TL-Verilog pipelines as well as other powerful constructs, including hierarchy, state, validity, and transactions in the TL-Verilog tutorials inside the Makerchip IDE.

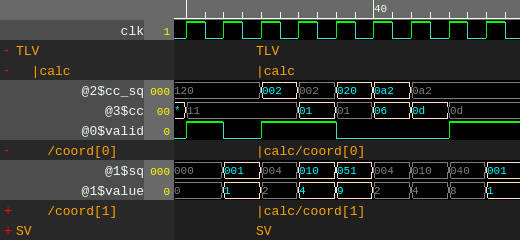

Waveforms are organized by TL-Verilog design hierarchy. Waveforms clearly show when signals are carrying meaningful data.

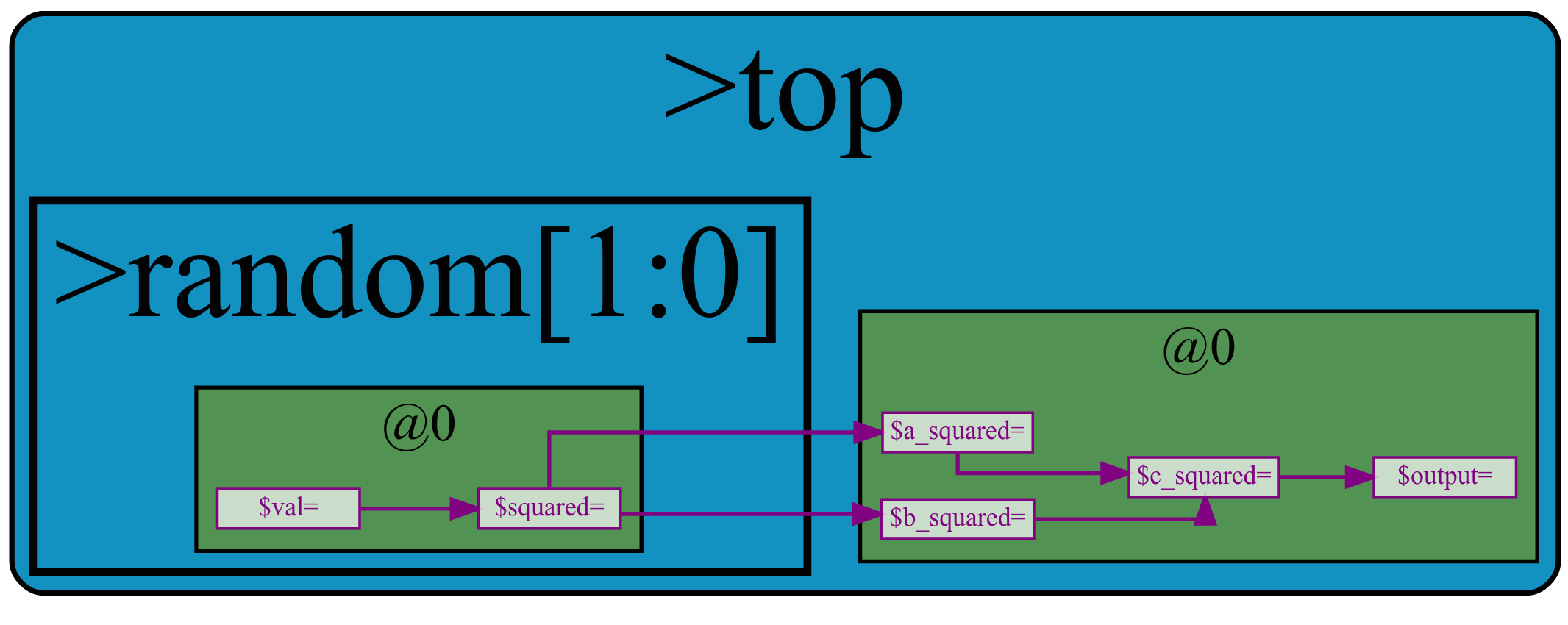

Your designs are represented in logic diagrams. TL-Verilog design hierarchy,
including pipelines and pipeline stages, provides organization to

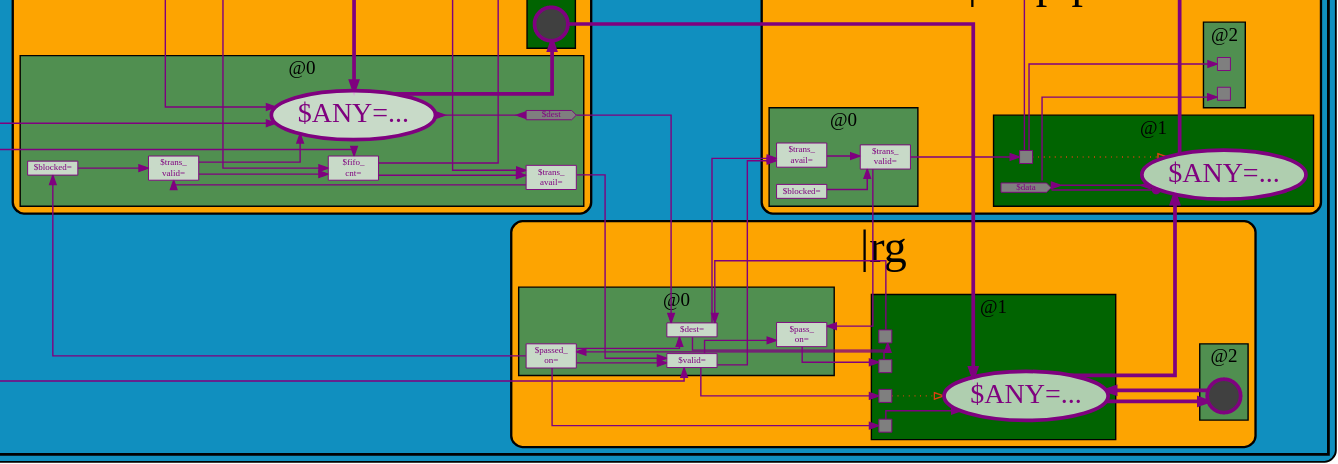

your logic diagrams. Below, the path through
$ANY ovals shows the
flow a transaction will follow through an example design.

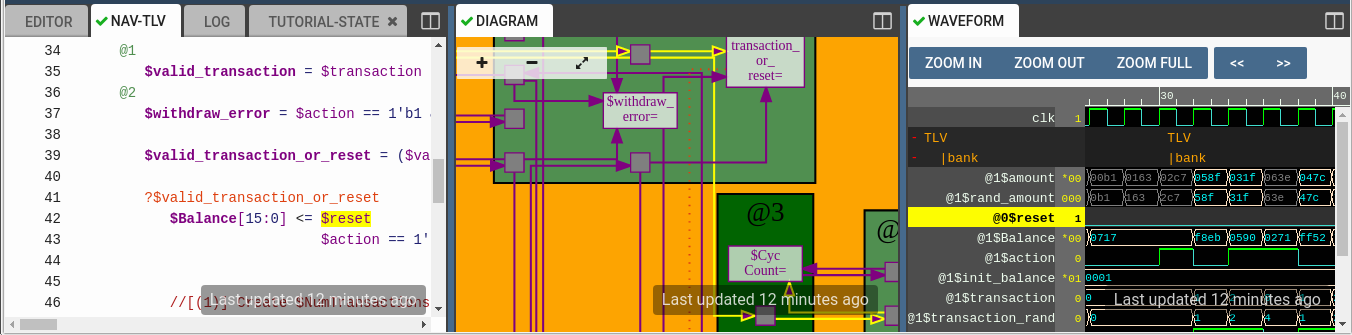

TL-Verilog constructs in the code editor, diagram, and waveform viewer are all linked together. Clicking an element such as a pipesignal in one view will highlight that element across all views.
